PBR 2500L

Dual Algae Photobioreactor
  • Highly productive tank on a small footprint
  • Simple biosecure inoculation
  • Batch or continuous operation
  • Autoclavable tubing, filters and disconnects
  • 0.1µm air, vent and media filters
  • UV Sterilizer with 0.2µm absolute pre-filter
  • Automated stirring & addition of nutrients
  • Fits through standard double door
  • 4 hour initial set-up
DOWNLOAD BROCHURE

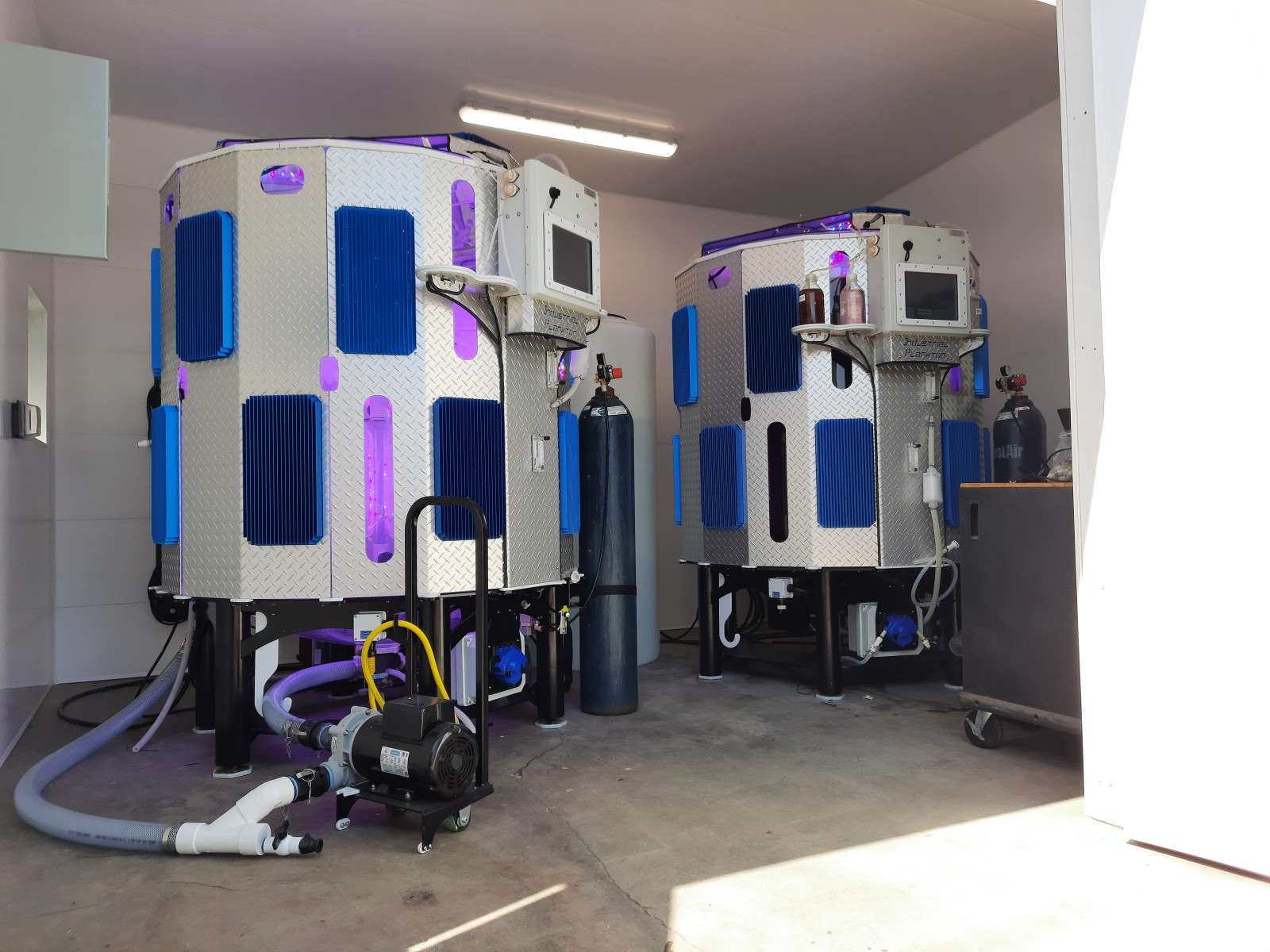

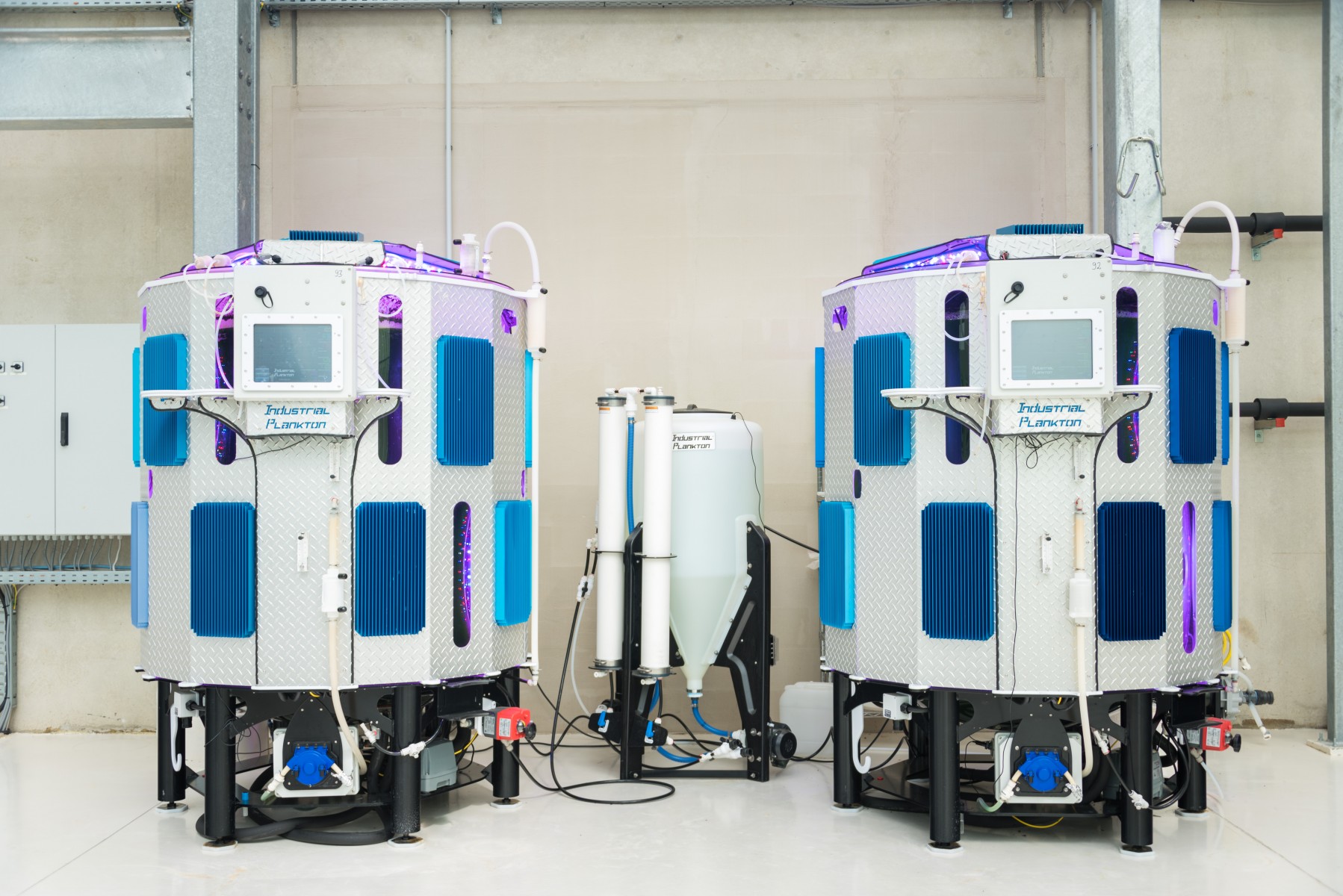

2500 L algae photobioreactor 2500 L algae bioreactor PBR 2500L reactor cleaning algae hatchery production PBR 2500L algae bioreactors
1 / 7
Features How it works Algae Production Specifications
PBR 2500L Features

Biosecure Algae Cultures
LED LEDs Designed for Algae
Real-time Graphing and Data Logging
pH control Closed-Loop pH Control
clean Self Cleaning Biosecure Tank
Automated Scale-up and Harvest
Remote Access & WiFi
Touchscreen Controls Intuitive Touchscreen Controls
Temperature control Integrated Temperature Control
How it Works
algae reactor
Inoculation
Biosecure disconnects make inoculation from starter algae cultures (2 x 20L) simple & clean.
photobioreactor
Scale up
The PBR automatically adds water & nutrients as it scales up the culture over 7-10 days.
Algae reactor
Harvest
The PBR automatically harvests in continuous or semi-continuous mode for months at a time. At any point the entire batch can be harvested.
Algae bioreactor
Clean
Between batches run the automated chemical CIP cycle to clean & sterilize the PBR. After a few hours the reactor is ready to be re-inoculated.

Continuous Production

400L – 1000L harvested / day

By Species (Million Cells / ml)

25 Thalassiosira pseudonana

20 Isochrysis sp.

130 Nannochloropsis sp.

4 Tetraselmis sp.

23 Chaetoceros muelleri
By Weight (Ash Free Dry Weight)

200 – 500g / day algal dry weight (suspended in water)

0.3g / L – 1.2g / L density

Batch Densities

Batch densities commonly exceed continuous

Species That Thrive

Thalassiosira weissflogii
Pavlova sp.
Karenia brevis
Skeletonema sp.
Chaetoceros gracilis
Chaetoceros calcitrans
Haematococcus pluvialis
Spirulina sp.
Chlamydomonas sp.
Chlorella sp.

Production may vary based on quality of strain and inoculum

Technical Information

6-16 week continuous production
2 x 20L inoculants for 7-10 day scale up
2.25 hours / week of labor

Specifications subject to change without notice

Specifications

Working Volume 2400 L / 634 gal
Max Power Consumption (Spray Clean) 9,900 W
Avg. Steady State Power Consumption 6,070 W
Working Space (LxWxH) 5.33 m x 2.44 m x 2.79 m / 210 in x 96in x 110in
Doorway Clearance (WxH) 1.51 m x 2.02 m / 59.5 in x 79 7/8 in
Operational Weight 4,260 kg / 9,400lbs

Specifications subject to change without notice
